Walter

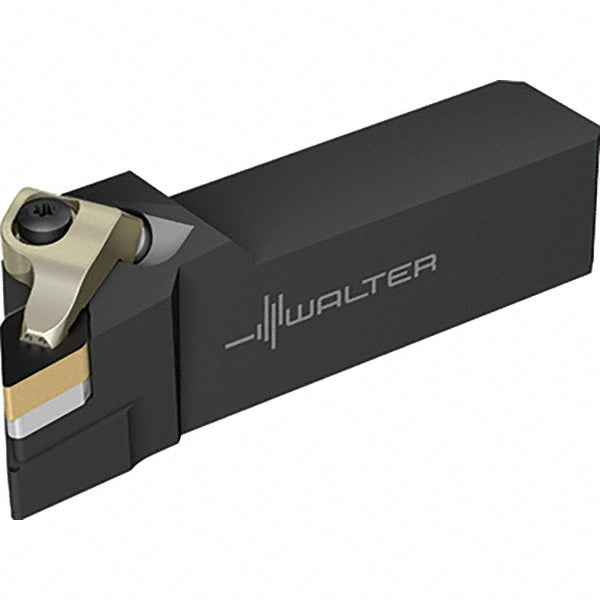

Indexable Turning & Profiling - Walter 7031694
MFR# 7031694Series DDJN-ISO-AUSSEN-INCH-P
$332.14List $388.80
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 7031694 indexable turning & profiling. Series DDJN-ISO-AUSSEN-INCH-P.
Specifications
Back of bar to cutting edge (mm)25.40
Compatible insert size codeDDJN-P
Cutting directionLeft Hand
Cutting tool applicationTurning
Head length1.9690
Insert holding methodClamp
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
StandardsANSI; ISO
Toolholder materialSteel
Toolholder styleDDJN
