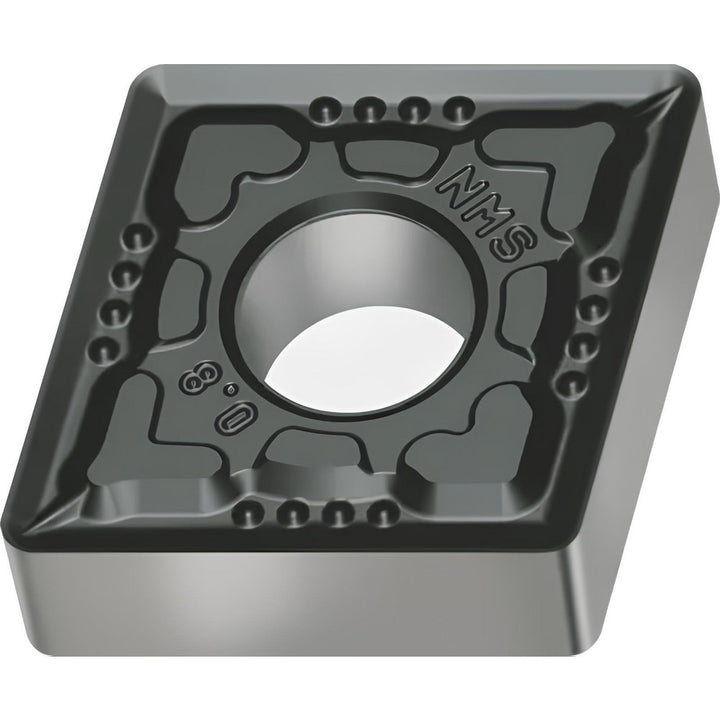

CNMG120408-NMS WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7053842

Walter

CNMG120408-NMS WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7053842

MFR# 7053842ISO/ANSI# CNMG432-NMS WSM20SSeries CNMG-NMS

$18.44List $23.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7053842 is a CNMG120408-NMS WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerNMS
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-NMS WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-NMS WSM20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number7053842
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
