Walter

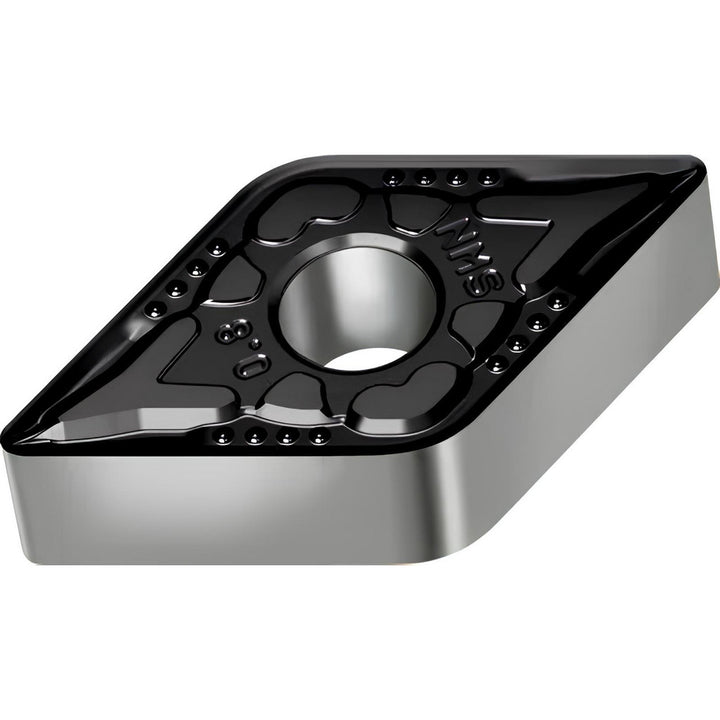

DNMG150404-NMS WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7053846
MFR# 7053846ISO/ANSI# DNMG150404Series DNMG-NMS
$28.27List $35.63
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 7053846 is a DNMG150404-NMS WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerNMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNMG431-NMS WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-NMS WSM10S
Iso insert codeDNMG150404
Iso size code150404
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number7053846
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
