Walter

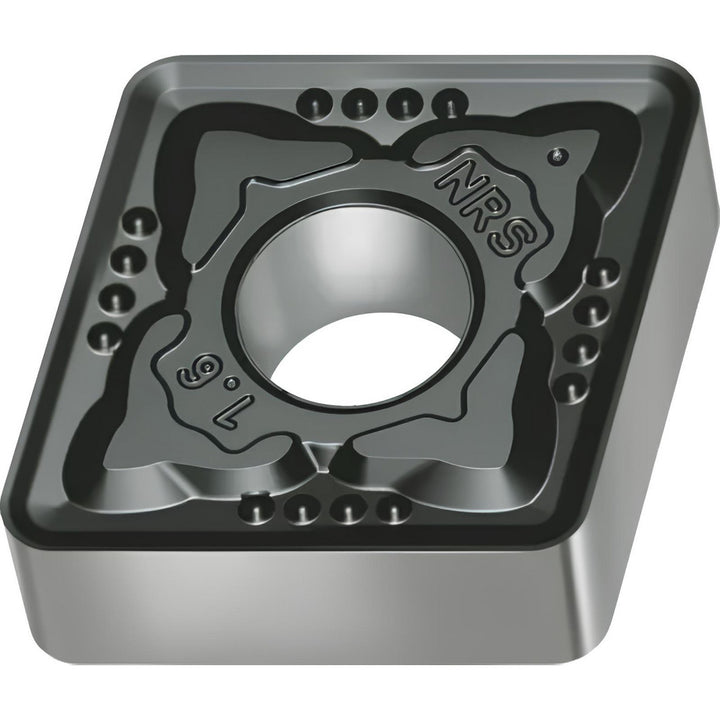

CNMG190608-NRS WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7053912
MFR# 7053912ISO/ANSI# CNMG642-NRS WSM20SSeries CNMG-NRS
$49.29List $62.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7053912 is a CNMG190608-NRS WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerNRS
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle80degree
Industry standard numberCNMG642-NRS WSM20S
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond 80
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608-NRS WSM20S
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number7053912
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.7620
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle19
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.7616in
Wiper edgeNo
