Walter

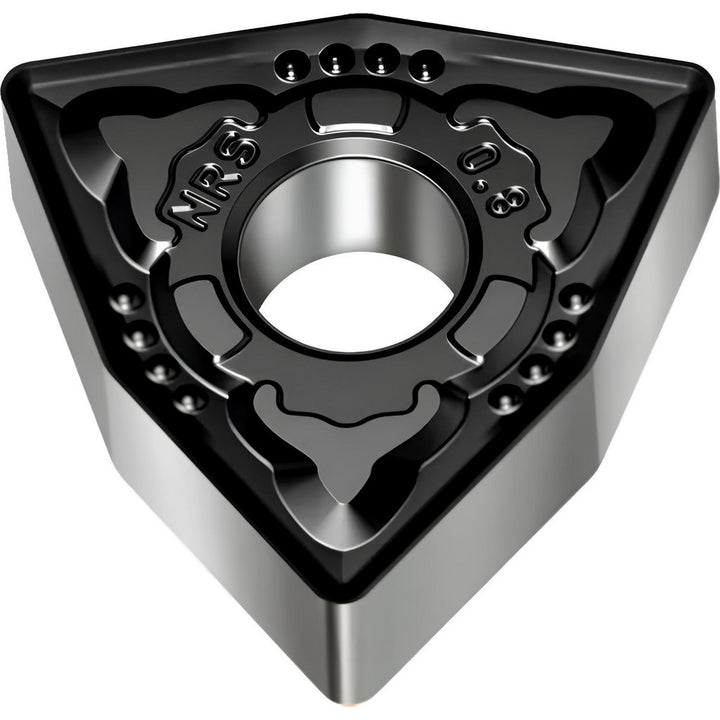

WNMG080408-NRS WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7053936
MFR# 7053936ISO/ANSI# WNMG080402Series WNMG-NRS
$24.69List $31.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7053936 is a WNMG080408-NRS WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerNRS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG432-NRS WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-NRS WSM20S
Iso insert codeWNMG080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number7053936
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle19
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
