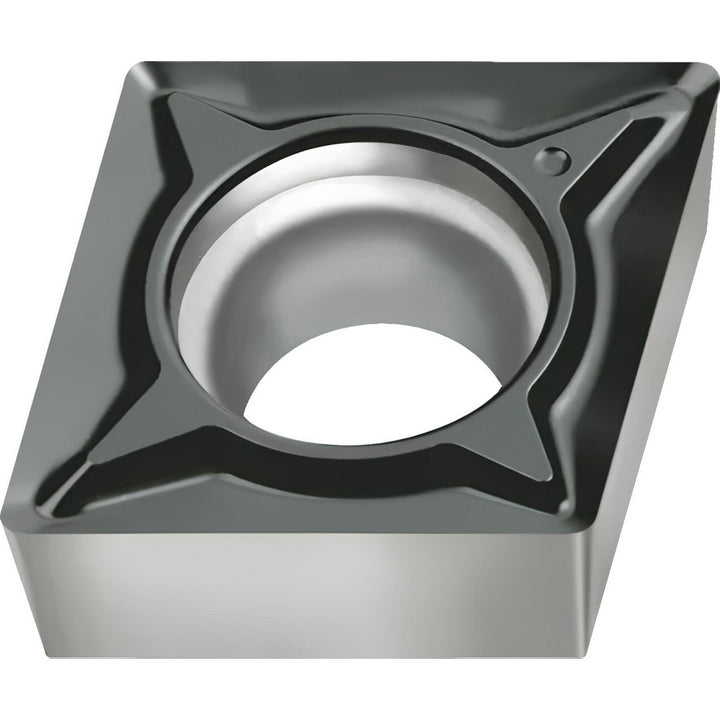

CCGT060204-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054035

Walter

CCGT060204-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054035

MFR# 7054035ISO/ANSI# CCGT2(1.5)1-FM2 WSM20SSeries CCGT-FM2

$22.97List $29.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7054035 is a CCGT060204-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCGT2(1.5)1-FM2 WSM20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204-FM2 WSM20S
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number7054035
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width0.2540in
Wiper edgeNo
