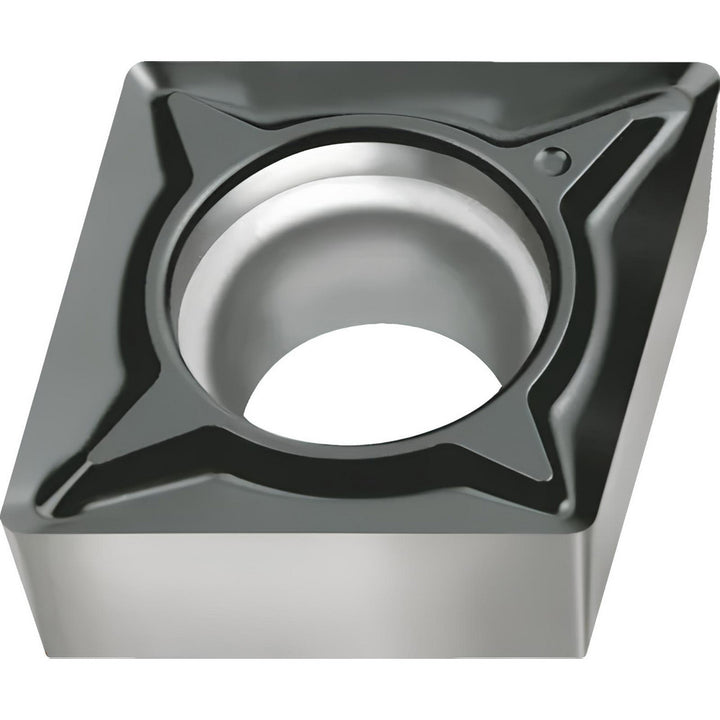

CCGT09T308-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054051

Walter

CCGT09T308-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054051

MFR# 7054051ISO/ANSI# CCGT3(2.5)2-FM2 WSM20SSeries CCGT-FM2

$26.87List $34.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7054051 is a CCGT09T308-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCCGT3(2.5)2-FM2 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308-FM2 WSM20S
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number7054051
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.3810
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width0.3810in
Wiper edgeNo
