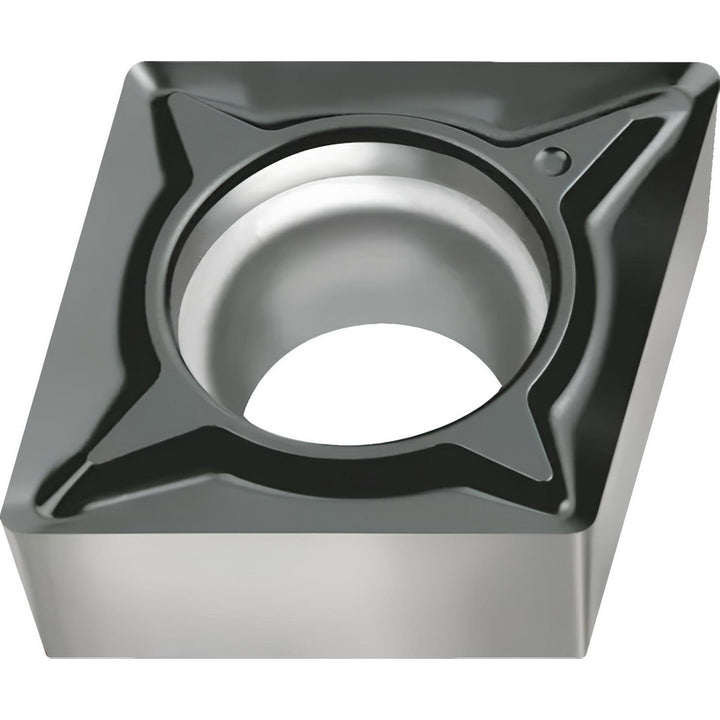

CCGT120404-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054052

Walter

CCGT120404-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054052

MFR# 7054052ISO/ANSI# CCGT431-FM2 WSM20SSeries CCGT-FM2

$26.52List $34.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7054052 is a CCGT120404-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2170
Included angle80degree
Industry standard numberCCGT431-FM2 WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120404-FM2 WSM20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number7054052
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width0.5080in
Wiper edgeNo
