Walter

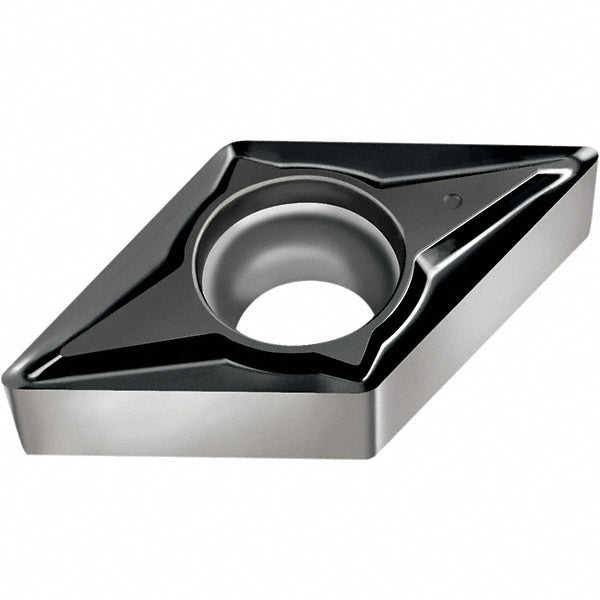

DCGT070201-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054054
MFR# 7054054ISO/ANSI# DCGT2(1.5)0.2-FM2 WSM20SSeries DCGT-FM2
$20.58List $25.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7054054 is a DCGT070201-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle55
Industry standard numberDCGT2(1.5)0.2-FM2 WSM20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3050
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50.2
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201-FM2 WSM20S
Lead angle55
Length range0.3000 - 0.4000
Manufacturers catalog number7054054
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.3050
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
