DCGT11T301-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054057

Walter

DCGT11T301-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054057

MFR# 7054057ISO/ANSI# DCGT3(2.5)0.2-FM2 WSM20SSeries DCGT-FM2

$26.35List $33.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

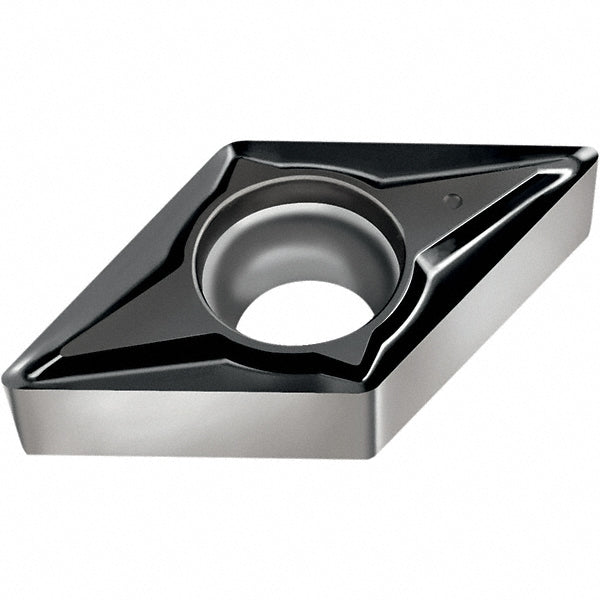

The Walter 7054057 is a DCGT11T301-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT3(2.5)0.2-FM2 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50.2
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T301-FM2 WSM20S
Lead angle55degree
Length range0.4000 - 0.5000
Manufacturers catalog number7054057
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
