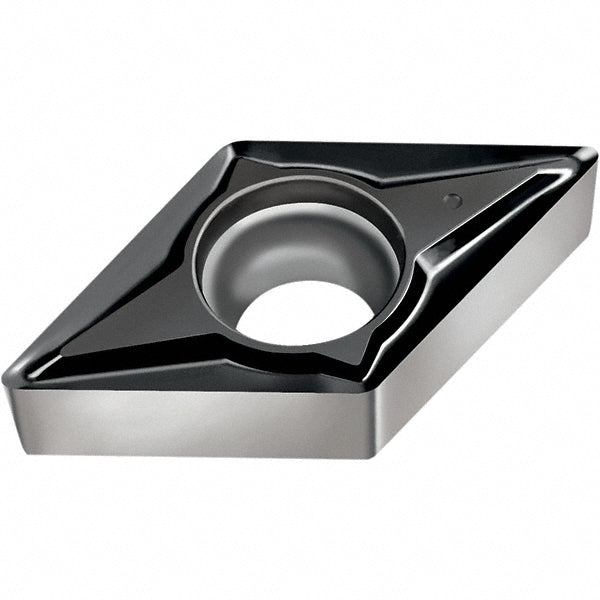

DCGT11T304-FM2 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7054059

Walter

DCGT11T304-FM2 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7054059

MFR# 7054059ISO/ANSI# DCGT3(2.5)1-FM2 WSM10SSeries DCGT-FM2

$26.35List $33.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeWSM10S
MaterialCarbide
CoatingTiAlN

Description

The Walter 7054059 is a DCGT11T304-FM2 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT3(2.5)1-FM2 WSM10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-FM2 WSM10S
Lead angle55degree
Length range0.4000 - 0.5000
Manufacturers catalog number7054059
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
