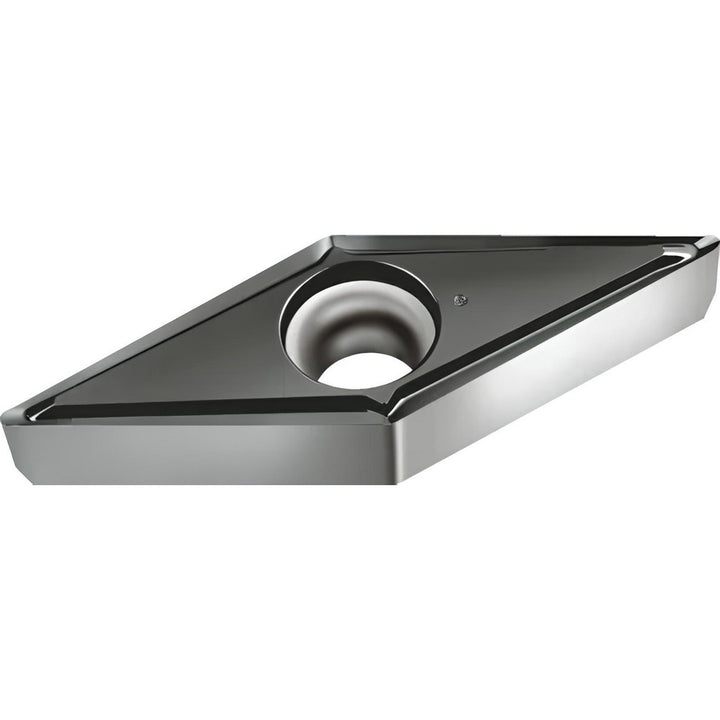

VCGT110301-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054077

Walter

VCGT110301-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054077

MFR# 7054077ISO/ANSI# VCGT2(2)0.2-FM2 WSM20SSeries VCGT-FM2

$31.48List $40.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7054077 is a VCGT110301-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0040
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle35degree
Industry standard numberVCGT2(2)0.2-FM2 WSM20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4360
Insert materialCarbide
Insert shapeDiamond 35
Insert size code220.2
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110301-FM2 WSM20S
Lead angle35degree
Length range0.4000 - 0.5000
Manufacturers catalog number7054077
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.4360
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
