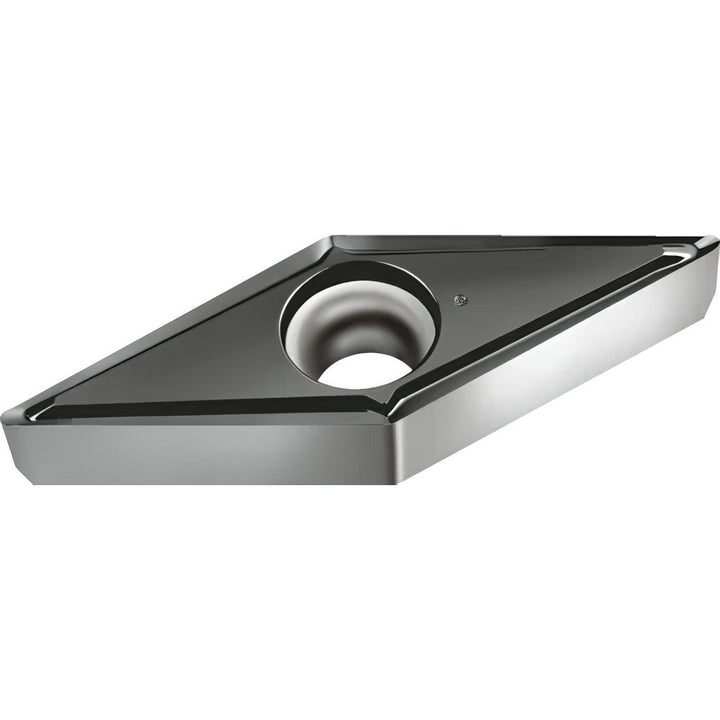

VCGT160402-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054081

Walter

VCGT160402-FM2 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7054081

MFR# 7054081ISO/ANSI# VCGT3(3)0.5-FM2 WSM20SSeries VCGT-FM2

$35.03List $44.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7054081 is a VCGT160402-FM2 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVCGT3(3)0.5-FM2 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160402-FM2 WSM20S
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number7054081
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
