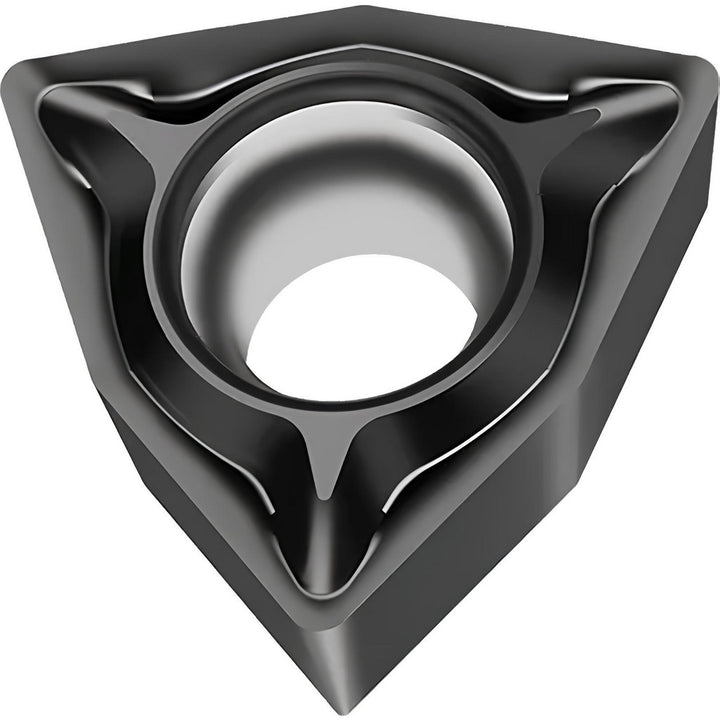

WCGT030204-FM2 WSM21 Carbide Insert, Grade WSM21, TiAlN - Walter 7054087

Walter

WCGT030204-FM2 WSM21 Carbide Insert, Grade WSM21, TiAlN - Walter 7054087

MFR# 7054087ISO/ANSI# WCGT1.8(1.5)1-FM2 WSM21Series WCGT-FM2

$22.58List $28.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC7/32
ShapeTrigon
GradeWSM21
MaterialCarbide
CoatingTiAlN

Description

The Walter 7054087 is a WCGT030204-FM2 WSM21 carbide indexable insert, grade WSM21, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0980
Included angle80degree
Industry standard numberWCGT1.8(1.5)1-FM2 WSM21
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3080
Insert materialCarbide
Insert shapeTrigon
Insert size code1.81.51
Insert styleWCGT
Insert thickness in3/32
Iso codeWCGT030204-FM2 WSM21
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number7054087
Manufacturer gradeWSM21
Material gradeP2; M20; S20
Maximum depth of cut0.1540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.3080in
Wiper edgeNo
