Walter

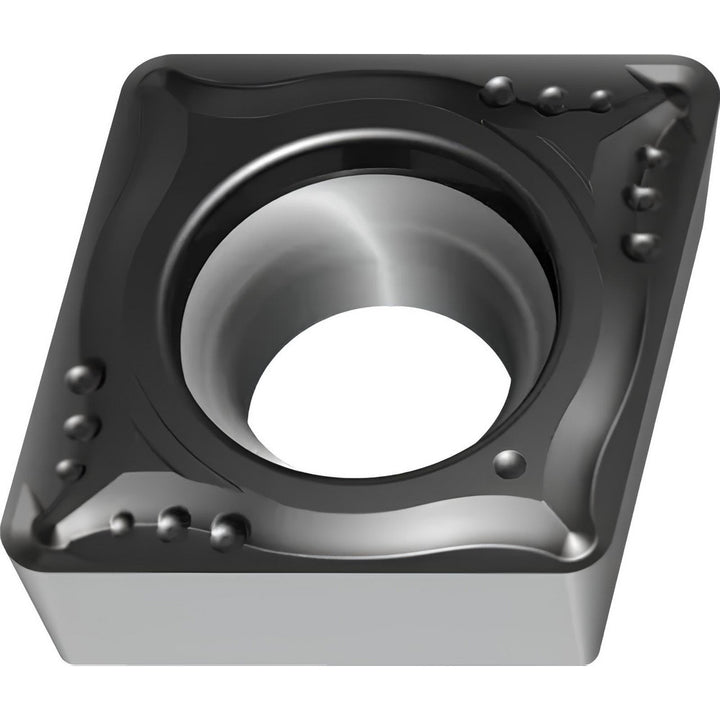

CCMT09T304-MM4 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 7054173
MFR# 7054173ISO/ANSI# CCMT09T304Series CCMT-MM4
$17.91List $22.56
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM30S
MaterialCarbide
CoatingTiCN
Description
The Walter 7054173 is a CCMT09T304-MM4 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerMM4
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT3(2.5)1-MM4 WSM30S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-MM4 WSM30S
Iso insert codeCCMT09T304
Iso size code09T304
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number7054173
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.3810
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3810
Wiper edgeNo
