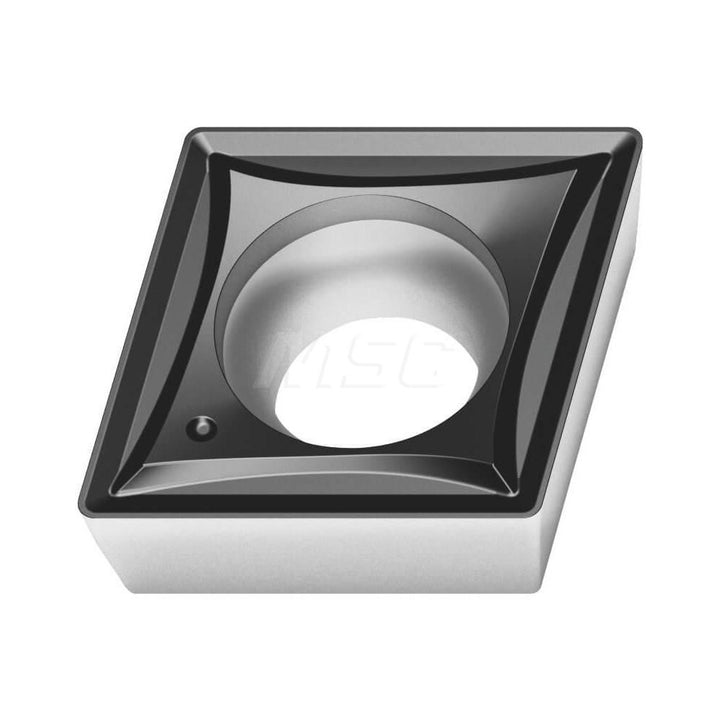

CCMT09T302-E47 WSM20S Solid Carbide Insert, Grade WSM20S, TiAlN - Walter 7077847

Walter

CCMT09T302-E47 WSM20S Solid Carbide Insert, Grade WSM20S, TiAlN - Walter 7077847

MFR# 7077847ISO/ANSI# CCMT09T302-E47 WSM20SCat# CCMT09T302-E47 WSM20SSeries CCMT-E47

$14.90List $19.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeWSM20S
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7077847 is a CCMT09T302-E47 WSM20S solid carbide indexable insert, grade WSM20S, TiAlN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi codeCCMT3(2.5)0.5-E47
ChipbreakerE47
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Included angle80
Inscribed circle0.3750
Insert handNeutral
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code09T302
Insert styleCCMT
Iso codeCCMT09T302-E47 WSM20S
Length0.3810
Manufacturers catalog numberCCMT09T302-E47 WSM20S
Manufacturer gradeWSM20S
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel
ShapeDiamond
StandardsANSI; ISO
Thickness0.1560
