Walter

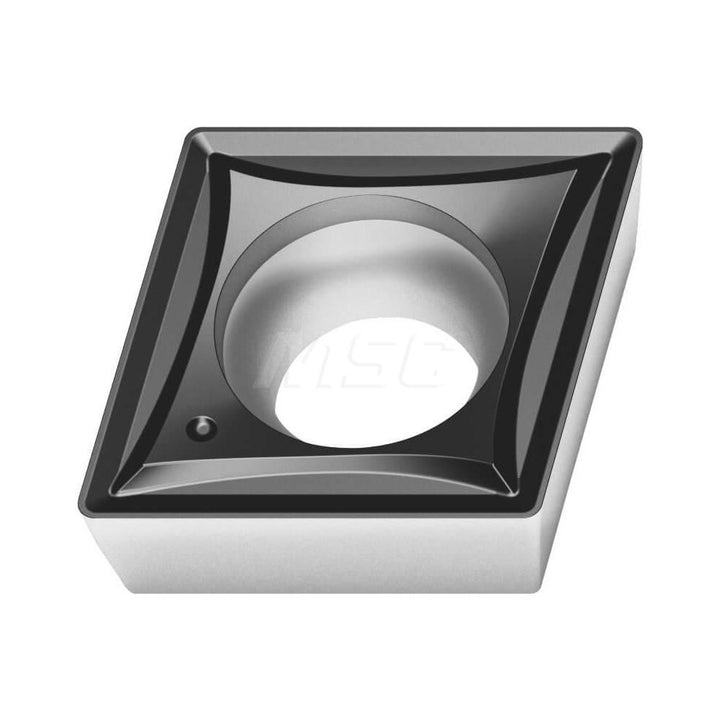

CCMT09T308-E47 WPP20S Solid Carbide Insert, Grade WPP20S, TiCN/Al2O3/(TiCN) - Walter 7077852
MFR# 7077852ISO/ANSI# CCMT09T308-E47 WPP20SCat# CCMT09T308-E47 WPP20SSeries CCMT-E47
$18.45List $23.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeWPP20S
MaterialSolid Carbide
CoatingTiCN/Al2O3/(TiCN)
Description
The Walter 7077852 is a CCMT09T308-E47 WPP20S solid carbide indexable insert, grade WPP20S, TiCN/Al2O3/(TiCN) coated. Suited for steel.
Specifications
Ansi codeCCMT3(2.5)2-E47
ChipbreakerE47
Coating finishTiCN/Al2O3/(TiCN)
Coating processCVD
Corner radius0.0310
Cutting directionNeutral
Included angle80
Inscribed circle0.3750
Insert handNeutral
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code09T308
Insert styleCCMT
Iso codeCCMT09T308-E47 WPP20S
Length0.3810
Manufacturers catalog numberCCMT09T308-E47 WPP20S
Manufacturer gradeWPP20S
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialCast Iron
ShapeDiamond
StandardsANSI; ISO
Thickness0.1560
