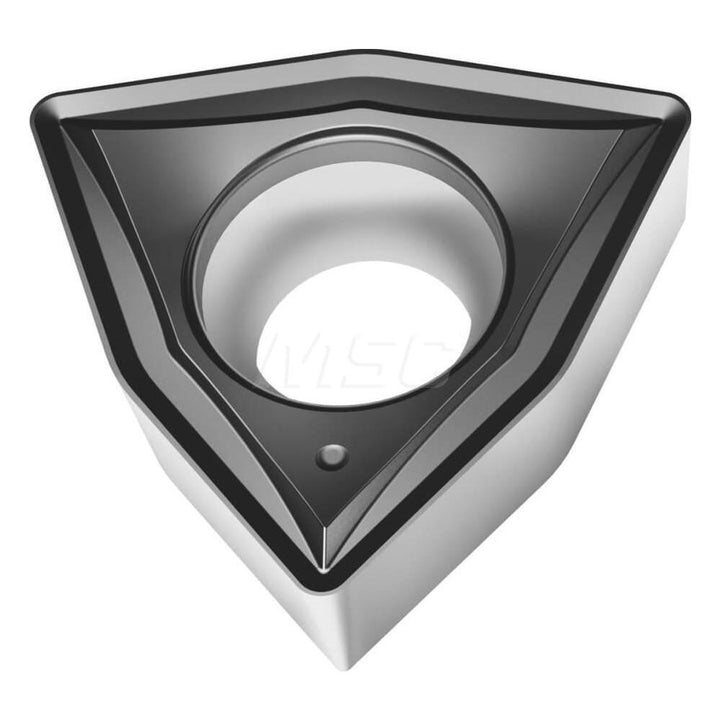

WCMT040204-E47 WSM20S Solid Carbide Insert, Grade WSM20S, TiAlN/Al2O3/Al - Walter 7077883

Walter

WCMT040204-E47 WSM20S Solid Carbide Insert, Grade WSM20S, TiAlN/Al2O3/Al - Walter 7077883

MFR# 7077883ISO/ANSI# WCMT040204-E47 WSM20SCat# WCMT040204-E47 WSM20SSeries WCMT-E47

$13.81List $17.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeWSM20S
MaterialSolid Carbide
CoatingTiAlN/Al2O3/Al

Description

The Walter 7077883 is a WCMT040204-E47 WSM20S solid carbide indexable insert, grade WSM20S, TiAlN/Al2O3/Al coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi codeWCMT2(1.5)1-E47
ChipbreakerE47
Coating finishTiAlN/Al2O3/Al
Coating processPVD
Corner radius0.0160
Cutting directionRight Hand
Included angle80
Inscribed circle0.2500
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code040204
Insert styleWCMT
Iso codeWCMT040204-E47 WSM20S
Length0.1690
Manufacturers catalog numberWCMT040204-E47 WSM20S
Manufacturer gradeWSM20S
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel
ShapeTrigon
StandardsANSI; ISO
Thickness0.0940
