Walter

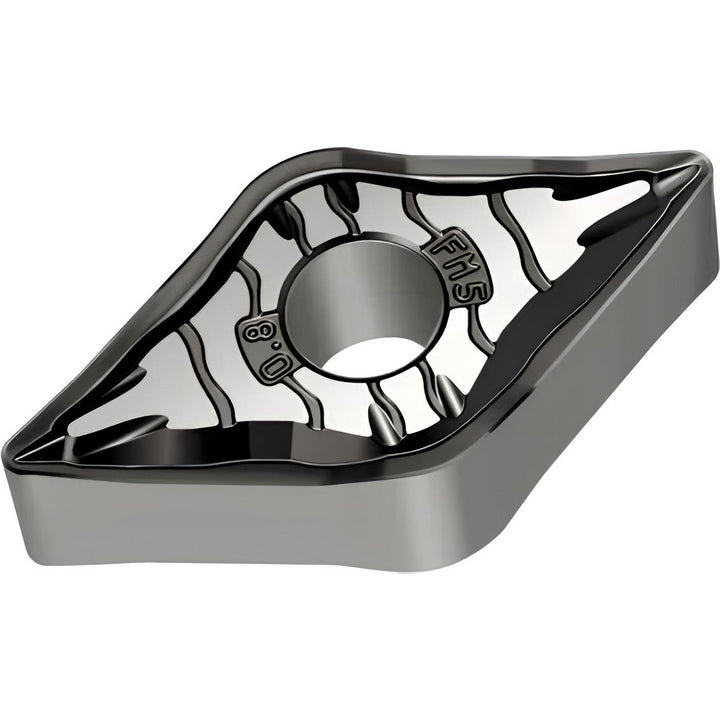

DNMG110404-FM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7091904
MFR# 7091904ISO/ANSI# DNMG110404Series DNMG-FM5
$19.46List $24.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7091904 is a DNMG110404-FM5 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG331
Ansi size code331
Chip breakerFM5
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle55
Industry standard numberDNMG331-FM5 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110404-FM5 WSM20S
Iso insert codeDNMG110404
Iso size code110404
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number7091904
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.4580
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
