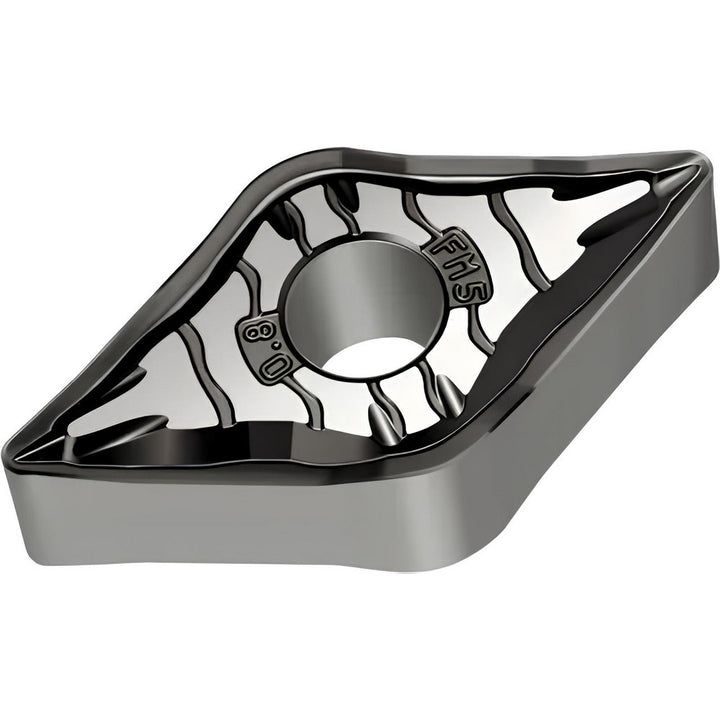

DNMG150404-FM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7091908

Walter

DNMG150404-FM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7091908

MFR# 7091908ISO/ANSI# DNMG431-FM5 WSM10SSeries DNMG-FM5

$23.49List $30.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWSM10S
MaterialCarbide
CoatingTiAlN

Description

The Walter 7091908 is a DNMG150404-FM5 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM5
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG431-FM5 WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-FM5 WSM10S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number7091908
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
