Walter

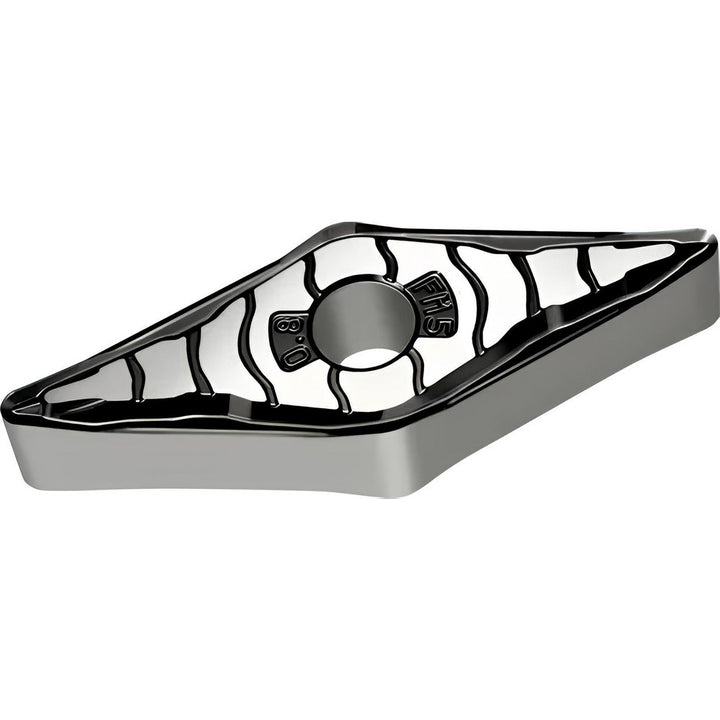

VNMG160404-FM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7091932
MFR# 7091932ISO/ANSI# VNMG160404Series VNMG-FM5
$33.79List $43.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 7091932 is a VNMG160404-FM5 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerFM5
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-FM5 WSM10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-FM5 WSM10S
Iso insert codeVNMG160404
Iso size code160404
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number7091932
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
