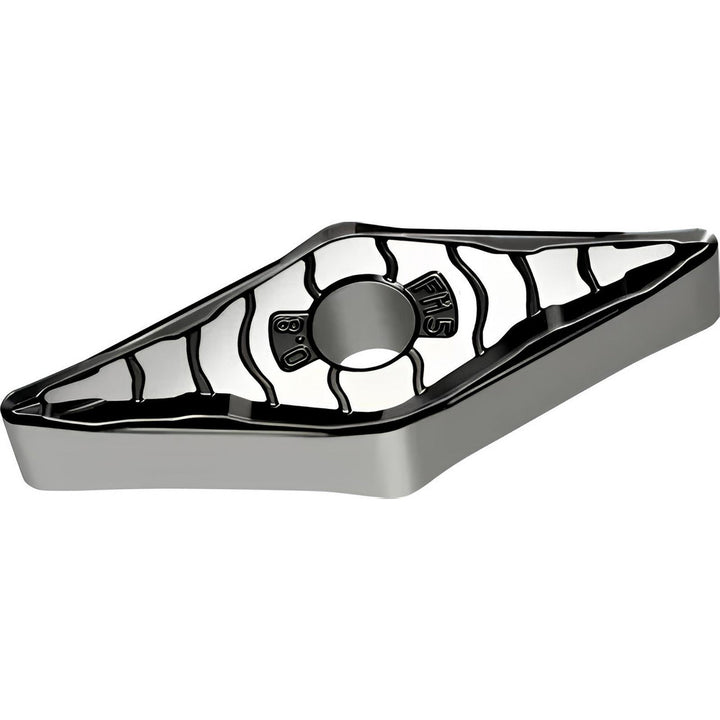

VNMG160404-FM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7091933

Walter

VNMG160404-FM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7091933

MFR# 7091933ISO/ANSI# VNMG331-FM5 WSM20SSeries VNMG-FM5

$33.79List $43.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7091933 is a VNMG160404-FM5 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-FM5 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-FM5 WSM20S
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number7091933
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
