Walter

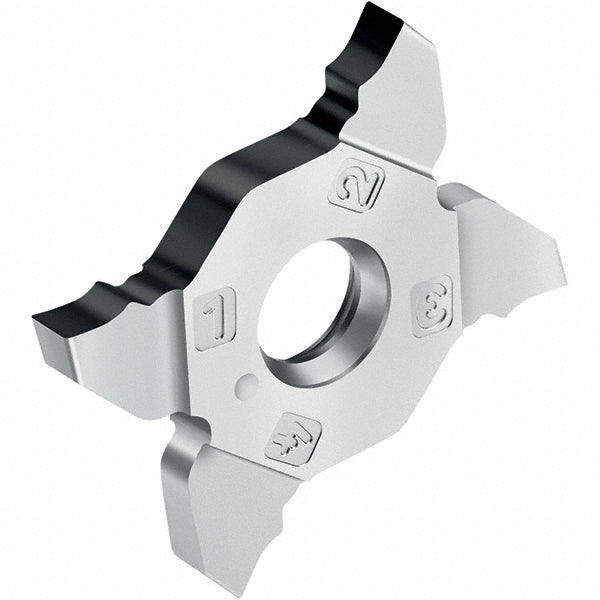

MX222E200N02GD8 WSM23S Carbide Insert, Grade WSM23S, Al2O3 - Walter 7100215
MFR# 7100215ISO/ANSI# MX222E200N02GD8 WSM23SCat# MX22-2E200N02-GD8 WSM23SSeries MX-GD8
$61.31List $74.74
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
CoatingAl2O3
Description
The Walter 7100215 is a MX222E200N02GD8 WSM23S carbide indexable insert, grade WSM23S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeMX222E200N02GD8 WSM23S
Chip breakerGD8
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting width0.0790
External relief angle6
Insert size code2E200N02
Insert styleMX22
Iso codeMX222E200N02GD8 WSM23S
Manufacturers catalog numberMX22-2E200N02-GD8 WSM23S
Manufacturer gradeWSM23S
Measurement typeMetric
Multi use toolYes
Overall length0.866
Primary workpiece materialSuperalloys
StandardsANSI; ISO
