Walter

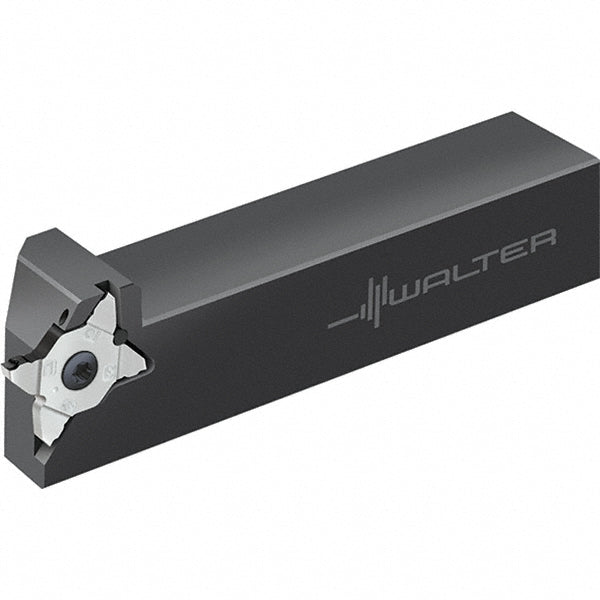

Indexable Grooving - Walter 7109173
MFR# 7109173Cat# G3011.16R-MX22-2-PSeries G3011-12-20-P-INCH
$326.60List $382.31
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 7109173 indexable grooving. Suited for stainless steel, steel, superalloy, titanium, titanium alloy. Series G3011-12-20-P-INCH.
Specifications
Back of bar to cutting edge (mm)23.73
Compatible insert size codeMX22-2E
Coolant throughYes
Hand of holderRight Hand
Head length1.024
Insert holding methodScrew
Insert seat sizeMX22
Manufacturers catalog numberG3011.16R-MX22-2-P
Maximum depth of cut0.2360
Minimum groove width (mm)0.80
Multi use toolYes
Overall length5.9055
Primary workpiece materialStainless Steel; Steel; Superalloy; Titanium; Titanium Alloy
Shank height1.0000
Shank length4.8815
Toolholder materialSteel
Toolholder styleG3011-P - Inch
