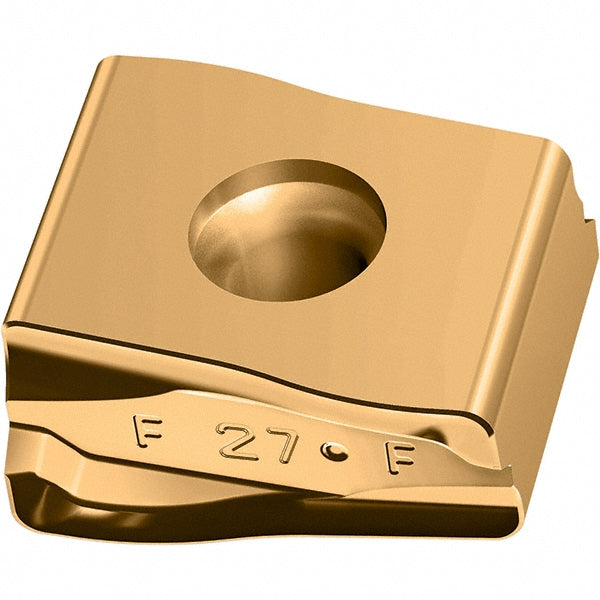

LNMX201012R-F57T WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169044

Walter

LNMX201012R-F57T WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169044

MFR# 7169044ISO/ANSI# LNMX201012R-F57T WKP35GCat# LNMX201012R-F57TSeries LNMX

$42.62List $54.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7169044 is a LNMX201012R-F57T WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNMX201012R-F57T WKP35G
Chip breakerF57T
Coating finishTiAlN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityM3016
Cutting edge styleChamfered; Honed
Hole diameter0.2169
Included angle degree90
Inscribed circle0.5390
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size20
Insert size code201012
Insert styleLNMX
Iso codeLNMX201012R-F57T WKP35G
Length0.7870
Length range0.7000 to 0.9000
Manufacturers catalog numberLNMX201012R-F57T
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.7870
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle16
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3940
Thickness range0.3500 to 0.5000
Width0.6710
