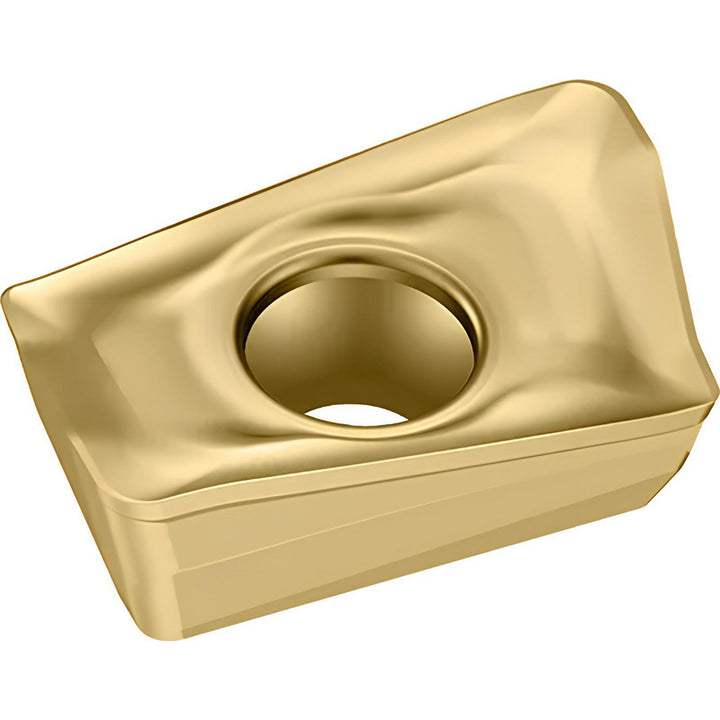

ADMT10T308R-F56 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169068

Walter

ADMT10T308R-F56 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169068

MFR# 7169068ISO/ANSI# ADMT10T308R-F56 WKP35GCat# ADMT10T308R-F56Series ADMT

$28.88List $37.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7169068 is a ADMT10T308R-F56 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT10T308R-F56 WKP35G
Chip breakerF56
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF4042R
Cutting edge styleChamfered; Honed
Hole diameter0.1098
Included angle degree85
Inscribed circle0.2850
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleADMT
Iso codeADMT10T308R-F56 WKP35G
Length0.4450
Length range0.4000 to 0.4500
Manufacturers catalog numberADMT10T308R-F56
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.4450
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.2850
