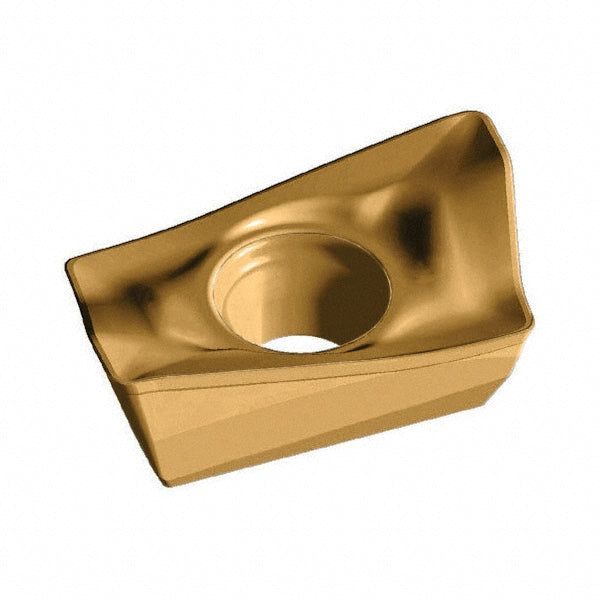

ADMT160608R-F56 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169073

Walter

ADMT160608R-F56 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7169073

MFR# 7169073ISO/ANSI# ADMT160608R-F56 WKP35GCat# ADMT160608R-F56Series ADMT

$34.02List $43.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7169073 is a ADMT160608R-F56 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT160608R-F56 WKP35G
Chip breakerF56
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F2252; F4042; F4238
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160608
Insert styleADMT
Iso codeADMT160608R-F56 WKP35G
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADMT160608R-F56
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
