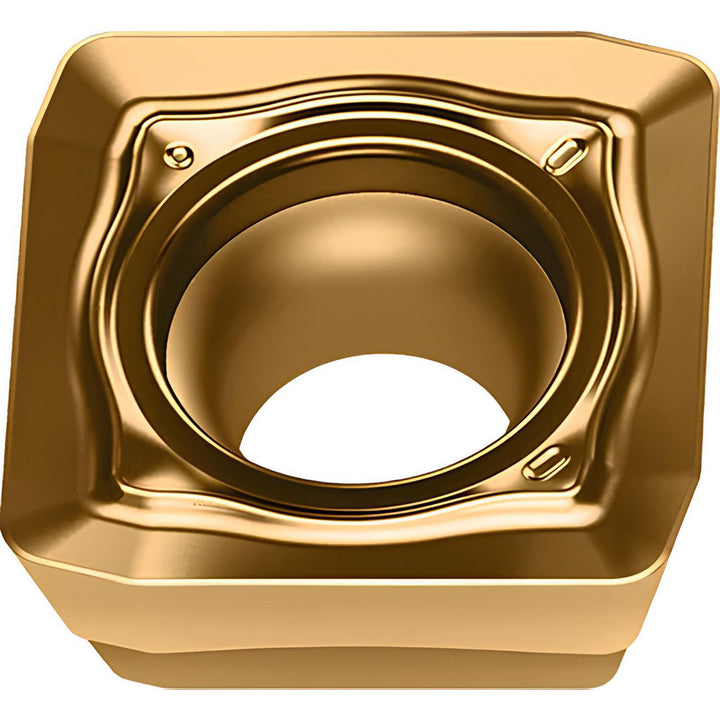

SDMT1204ZDR-D57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170569

Walter

SDMT1204ZDR-D57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170569

MFR# 7170569ISO/ANSI# SDMT1204ZDR-D57 WKP35GCat# SDMT1204ZDR-D57Series SDMT

$24.68List $31.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7170569 is a SDMT1204ZDR-D57 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSDMT1204ZDR-D57 WKP35G
Chip breakerD57
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM4000
Cutting edge styleHoned
Hole diameter0.1728
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDMT
Iso codeSDMT1204ZDR-D57 WKP35G
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMT1204ZDR-D57
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
