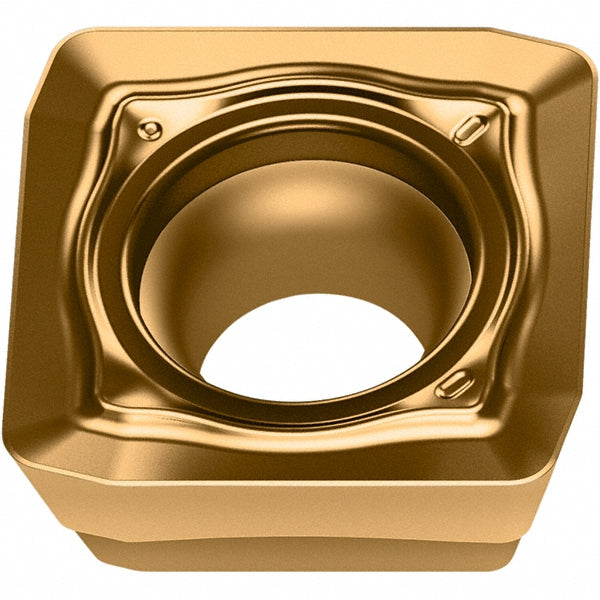

SDMT09T3ZDR-D57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170575

Walter

SDMT09T3ZDR-D57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170575

MFR# 7170575ISO/ANSI# SDMT09T3ZDR-D57 WKP35GCat# SDMT09T3ZDR-D57Series SDMT

$19.63List $25.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7170575 is a SDMT09T3ZDR-D57 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSDMT09T3ZDR-D57 WKP35G
Chip breakerD57
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM4000
Cutting edge styleHoned
Hole diameter0.1539
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSDMT
Iso codeSDMT09T3ZDR-D57 WKP35G
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT09T3ZDR-D57
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
