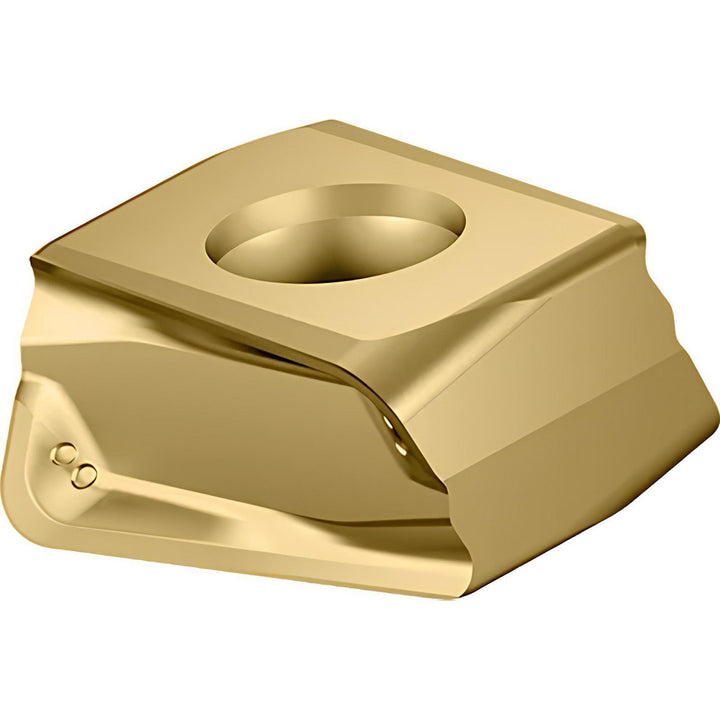

LNHU130616R-L55T WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170582

Walter

LNHU130616R-L55T WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170582

MFR# 7170582ISO/ANSI# LNHU130616R-L55T WKP35GCat# LNHU130616R-L55TSeries LNHU

$38.65List $49.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7170582 is a LNHU130616R-L55T WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNHU130616R-L55T WKP35G
Chip breakerL55T
Coating finishTiAlN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityF2010; F5138; F5141
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130616
Insert styleLNHU
Iso codeLNHU130616R-L55T WKP35G
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberLNHU130616R-L55T
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.4720
