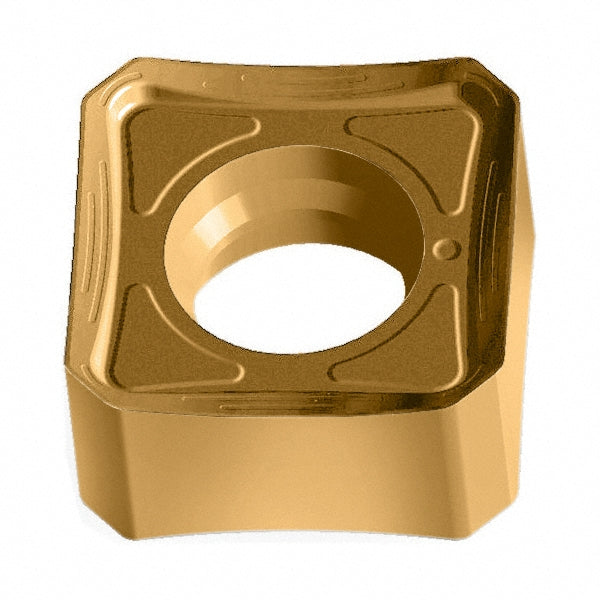

SNMX1205ANN-F57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170612

Walter

SNMX1205ANN-F57 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170612

MFR# 7170612ISO/ANSI# SNMX1205ANN-F57 WKP35GCat# SNMX1205ANN-F57Series SNMX

$29.31List $37.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7170612 is a SNMX1205ANN-F57 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSNMX1205ANN-F57 WKP35G
Chip breakerF57
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; M5009
Cutting edge styleChamfered; Honed
Hole diameter0.2402
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNMX
Iso codeSNMX1205ANN-F57 WKP35G
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSNMX1205ANN-F57
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle16
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width in1/2
