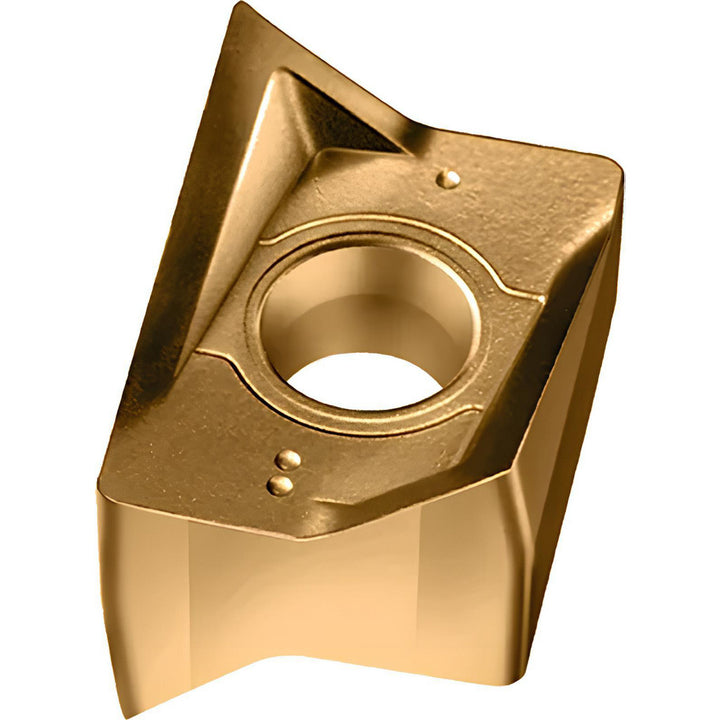

LNGX130708R-L55 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7170615

MFR# 7170615ISO/ANSI# LNGX130708R-L55 WKP35GCat# LNGX130708R-L55Series LNGX

$35.80List $45.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7170615 is a LNGX130708R-L55 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNGX130708R-L55 WKP35G
Chip breakerL55
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F4041
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130708
Insert styleLNGX
Iso codeLNGX130708R-L55 WKP35G
Length0.5390
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGX130708R-L55
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.5390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3050
Thickness range0.2500 to 0.3500
Width0.4330
