Walter

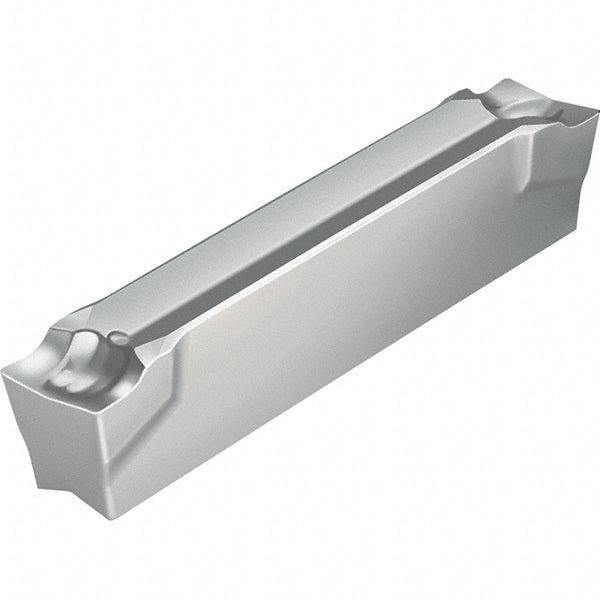

GX24-2E300N02-CK8 WK1 Solid Carbide Insert, Grade WK1 - Walter 7178822
MFR# 7178822ISO/ANSI# GX24-2E300N02-CK8 WK1Cat# GX24-2E300N02-CK8 WK1Series GX-E-CK8
$31.15List $39.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWK1
MaterialSolid Carbide
Description
The Walter 7178822 is a GX24-2E300N02-CK8 WK1 solid carbide indexable insert, grade WK1. Suited for non-ferrous metal.
Specifications
ChipbreakerCK8
Coating processUncoated
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert materialSolid Carbide
Insert size code2E300N02
Insert styleGX
Iso codeGX24-2E300N02-CK8 WK1
Lead angle directionNeutral
Manufacturers catalog numberGX24-2E300N02-CK8 WK1
Manufacturer gradeWK1
Multi use toolYes
Overall length0.9690
Overall width0.1180
Primary workpiece materialNon-Ferrous Metal
Relief angle10.00
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
