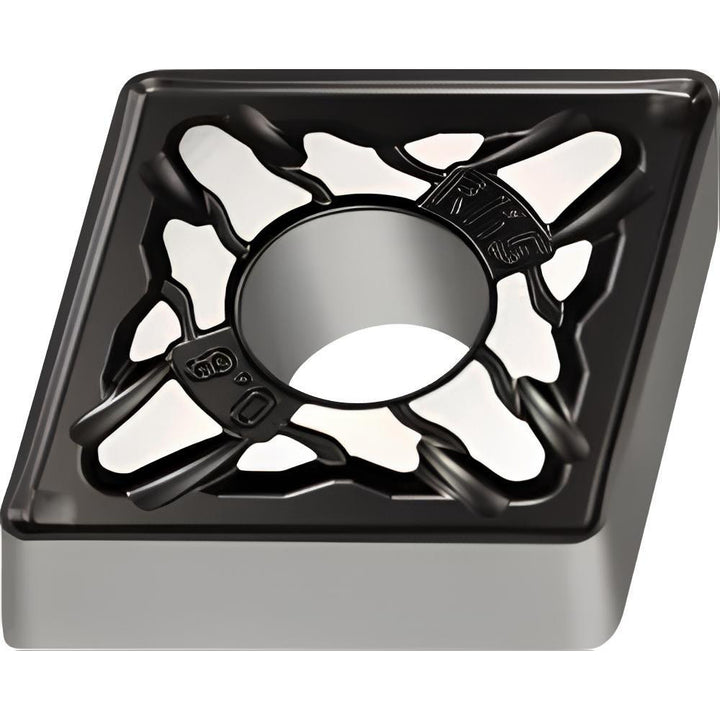

CNMG190612-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 7251122

Walter

CNMG190612-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 7251122

MFR# 7251122ISO/ANSI# CNMG643-RM5 WSM30SSeries CNMG-RM5

$41.01List $52.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeWSM30S
MaterialCarbide
CoatingTiCN

Description

The Walter 7251122 is a CNMG190612-RM5 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle80degree
Industry standard numberCNMG643-RM5 WSM30S
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-RM5 WSM30S
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number7251122
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.7620
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.7616in
Wiper edgeNo
