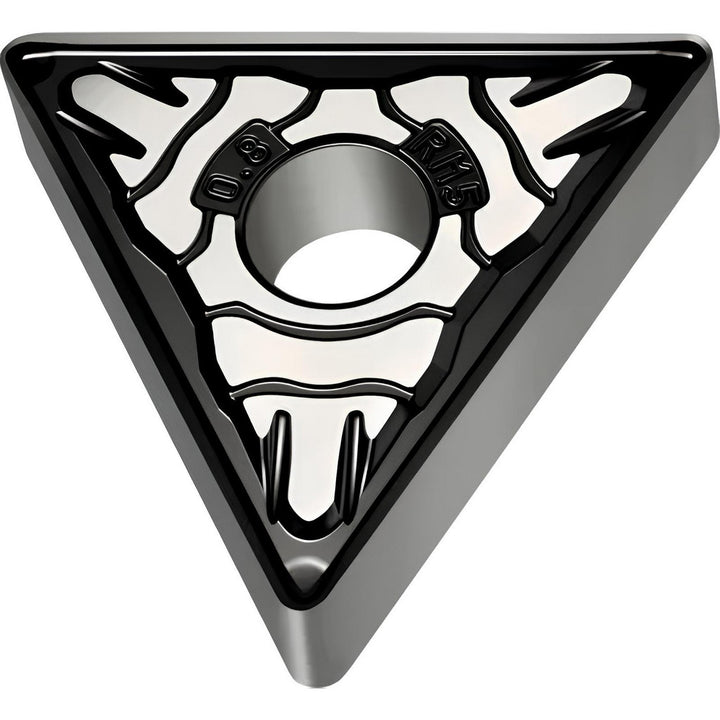

TNMG220408-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 7251150

Walter

TNMG220408-RM5 WSM30S Carbide Insert, Grade WSM30S, TiCN - Walter 7251150

MFR# 7251150ISO/ANSI# TNMG432-RM5 WSM30SSeries TNMG-RM5

$22.48List $28.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeWSM30S
MaterialCarbide
CoatingTiCN

Description

The Walter 7251150 is a TNMG220408-RM5 WSM30S carbide indexable insert, grade WSM30S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerRM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle60degree
Industry standard numberTNMG432-RM5 WSM30S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-RM5 WSM30S
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number7251150
Manufacturer gradeWSM30S
Material gradeM30; S30; P30
Maximum depth of cut0.8660
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.8660in
Wiper edgeNo
