Walter

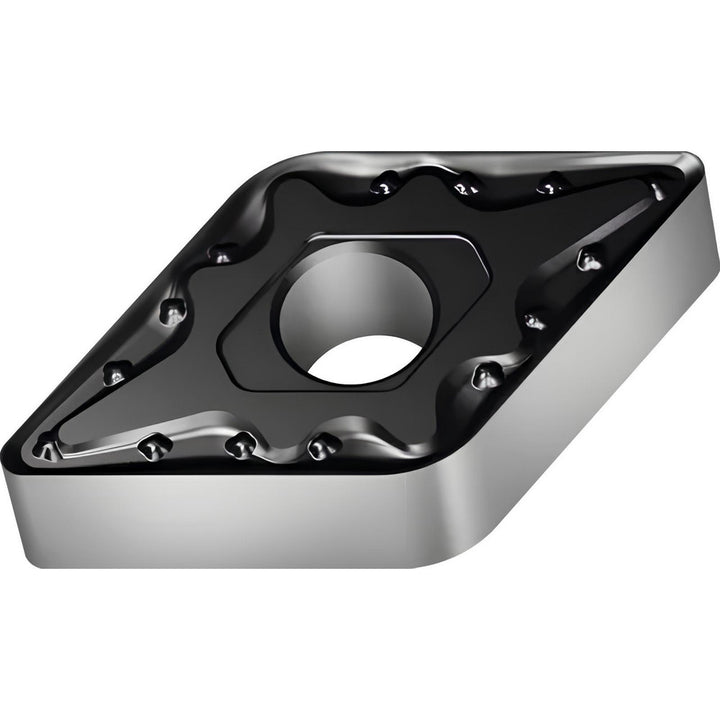

DNMG150404-MM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7251940
MFR# 7251940ISO/ANSI# DNMG431-MM5 WSM10SSeries DNMG-MM5
$28.27List $35.63
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 7251940 is a DNMG150404-MM5 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMM5
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG431-MM5 WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-MM5 WSM10S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number7251940
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
