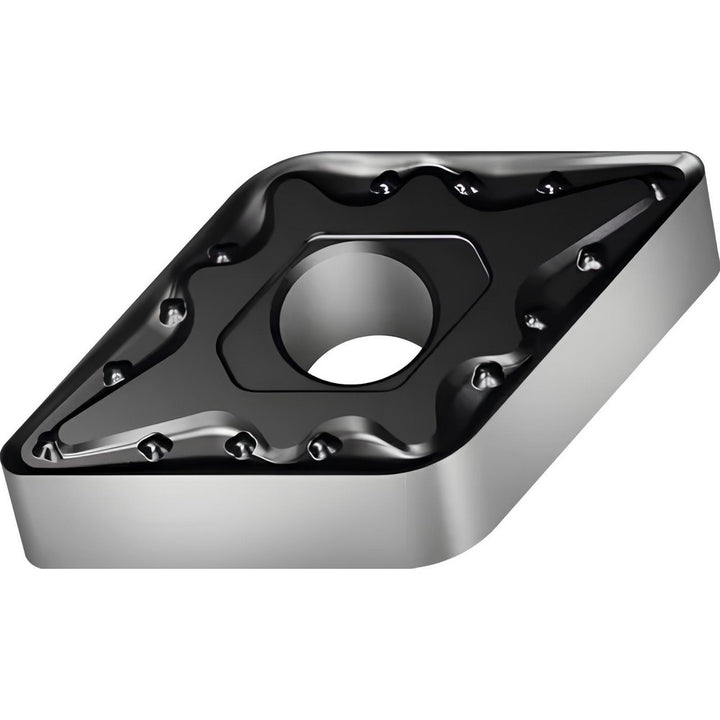

DNMG150412-MM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7251946

Walter

DNMG150412-MM5 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7251946

MFR# 7251946ISO/ANSI# DNMG433-MM5 WSM20SSeries DNMG-MM5

$23.49List $30.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWSM20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7251946 is a DNMG150412-MM5 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMM5
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG433-MM5 WSM20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412-MM5 WSM20S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number7251946
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
