Walter

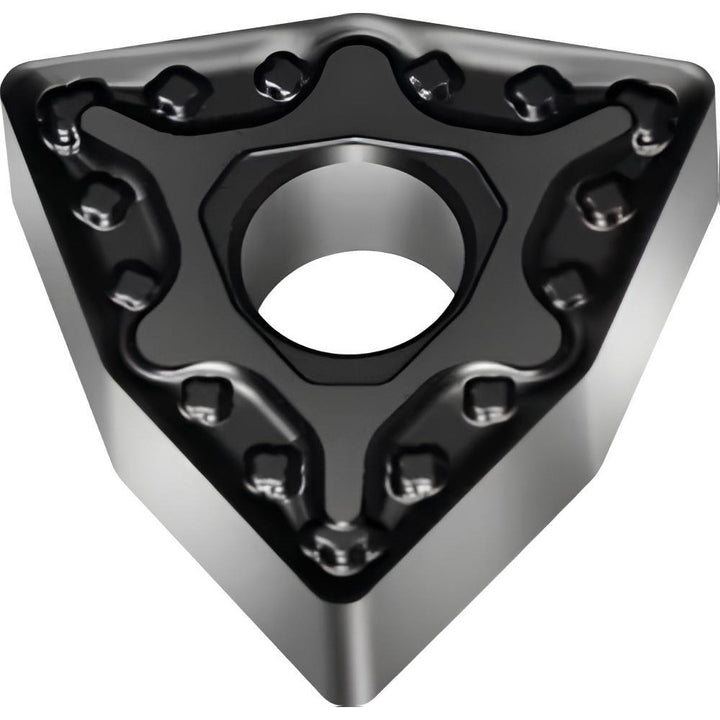

WNMG080404-MM5 WSM10S Carbide Insert, Grade WSM10S, TiAlN - Walter 7251988
MFR# 7251988ISO/ANSI# WNMG080404Series WNMG-MM5
$20.46List $26.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeWSM10S
MaterialCarbide
CoatingTiAlN
Description
The Walter 7251988 is a WNMG080404-MM5 WSM10S carbide indexable insert, grade WSM10S, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerMM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG431-MM5 WSM10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404-MM5 WSM10S
Iso insert codeWNMG080404
Iso size code080404
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number7251988
Manufacturer gradeWSM10S
Material gradeM1; S10; P10
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
