Walter

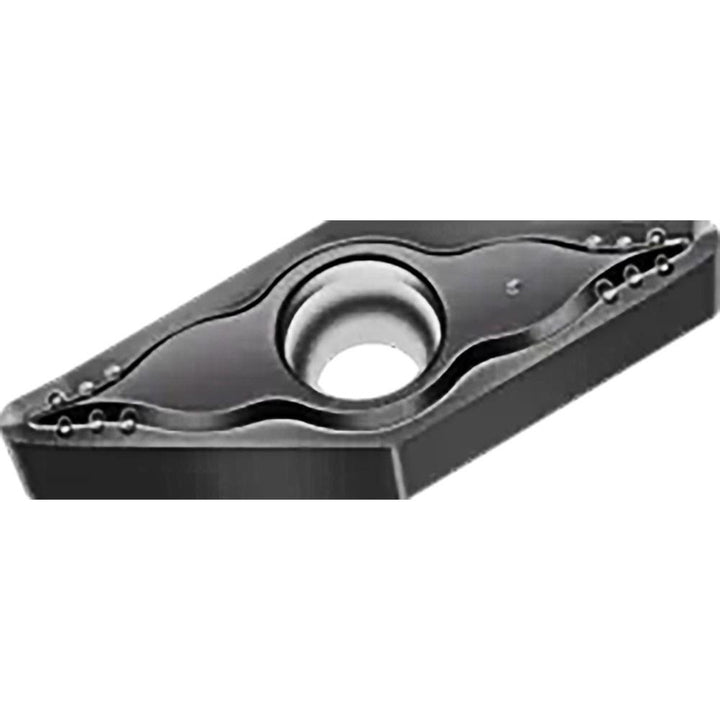

VCGT160402-MM4 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7268539
MFR# 7268539ISO/ANSI# VCGT3(3)0.5-MM4 WSM01Series VCGT-MM4
$43.45List $54.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWSM01
MaterialCarbide
CoatingTiAlN
Description
The Walter 7268539 is a VCGT160402-MM4 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMM4
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35
Industry standard numberVCGT3(3)0.5-MM4 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160402-MM4 WSM01
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number7268539
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
