Walter

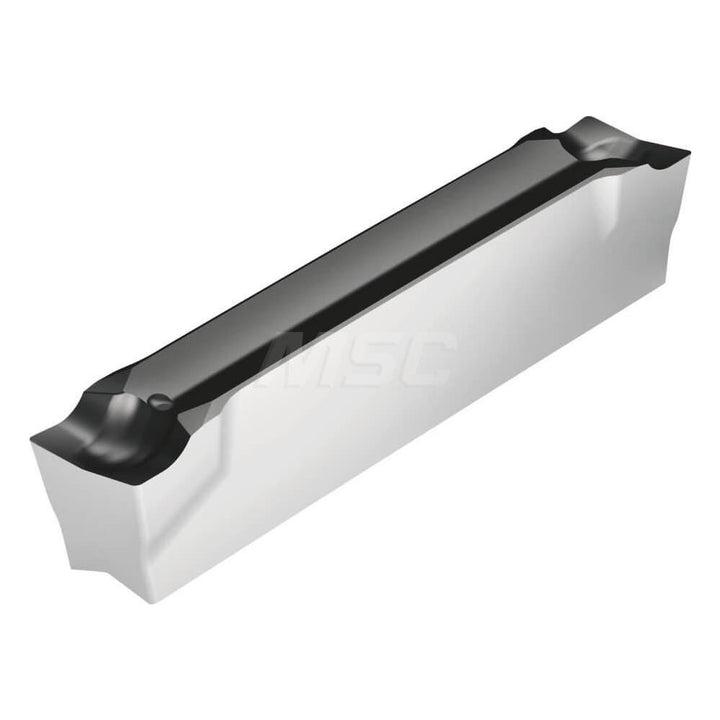

GX343E400N04CF5 WSM33S Carbide Insert, Grade WSM33S, Aluminum - Walter 7318910
MFR# 7318910ISO/ANSI# GX343E400N04CF5 WSM33SCat# GX34-3E400N04-CF5 WSM33SSeries Tiger-tec Silver
$37.72List $48.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAluminum
Description
The Walter 7318910 is a GX343E400N04CF5 WSM33S carbide indexable insert, grade WSM33S, Aluminum coated. Suited for superalloys.
Specifications
Ansi codeGX343E400N04CF5 WSM33S
Chip breakerCF5
Coating finishAluminum
Coating processPVD
Corner radius0.0160
Cutting width0.1570
Insert handNeutral
Insert materialCarbide
Insert size code3E400N04
Insert styleGX34
Iso codeGX343E400N04CF5 WSM33S
Manufacturers catalog numberGX34-3E400N04-CF5 WSM33S
Manufacturer gradeWSM33S
Maximum depth of cut (mm)32.00
Measurement typeMetric
Multi use toolYes
Overall width0.157
Primary workpiece materialSuperalloys
Rake angle10
StandardsANSI; ISO
