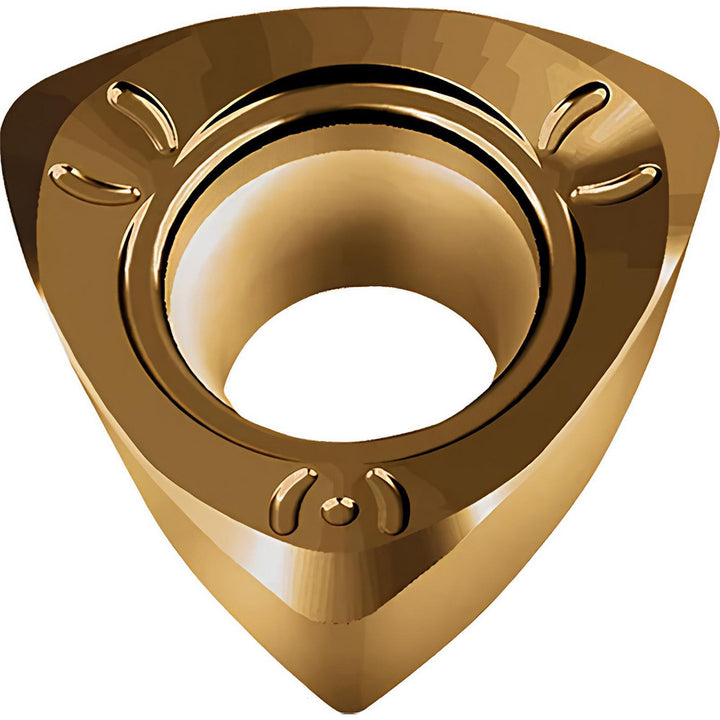

P26339R10 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7347377

Walter

P26339R10 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7347377

MFR# 7347377ISO/ANSI# P26339R10 WKP35GCat# P26339R10Series P26339

$24.51List $31.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeTriangle
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7347377 is a P26339R10 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeP26339R10 WKP35G
Chip breakerCommon
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2330
Cutting edge styleChamfered; Honed
Hole diameter0.1102
Included angle degree60
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert sizeP2
Insert size codeP26339
Insert styleP26339
Iso codeP26339R10 WKP35G
Length in17/64
Length range0.0000 to 0.3200
Manufacturers catalog numberP26339R10
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.2350
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle10
Relief angle14.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in17/64
