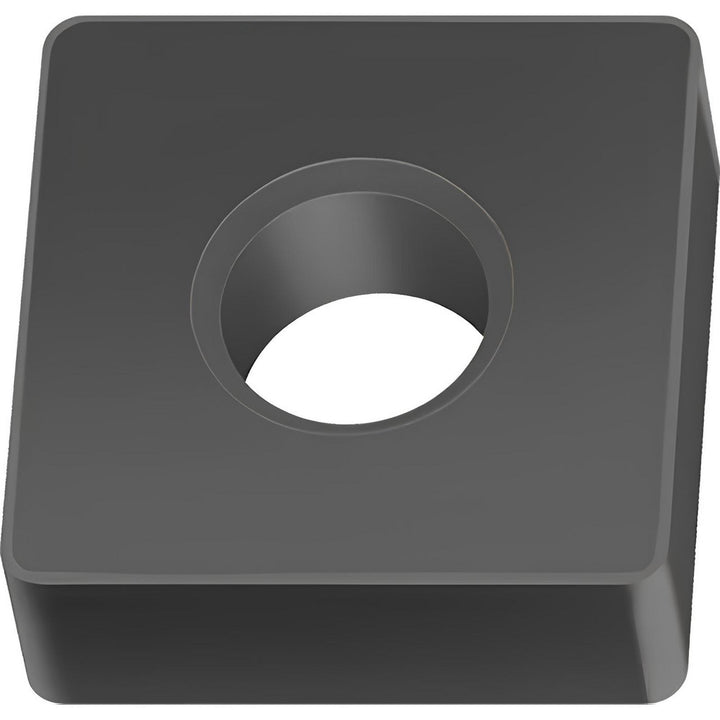

SNGA120416T02020 WCK10 Ceramic Insert, Grade WCK10 - Walter 7349628

Walter

SNGA120416T02020 WCK10 Ceramic Insert, Grade WCK10 - Walter 7349628

MFR# 7349628ISO/ANSI# SNGA434T02020 WCK10Series SNGA

$35.71List $42.13 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWCK10
MaterialCeramic

Description

The Walter 7349628 is a SNGA120416T02020 WCK10 ceramic indexable insert, grade WCK10. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2030
Included angle90degree
Industry standard numberSNGA434T02020 WCK10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code434
Insert styleSNGA
Insert thickness in3/16
Iso codeSNGA120416T02020 WCK10
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number7349628
Manufacturer gradeWCK10
Material gradeK10
Maximum depth of cut0.5000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
