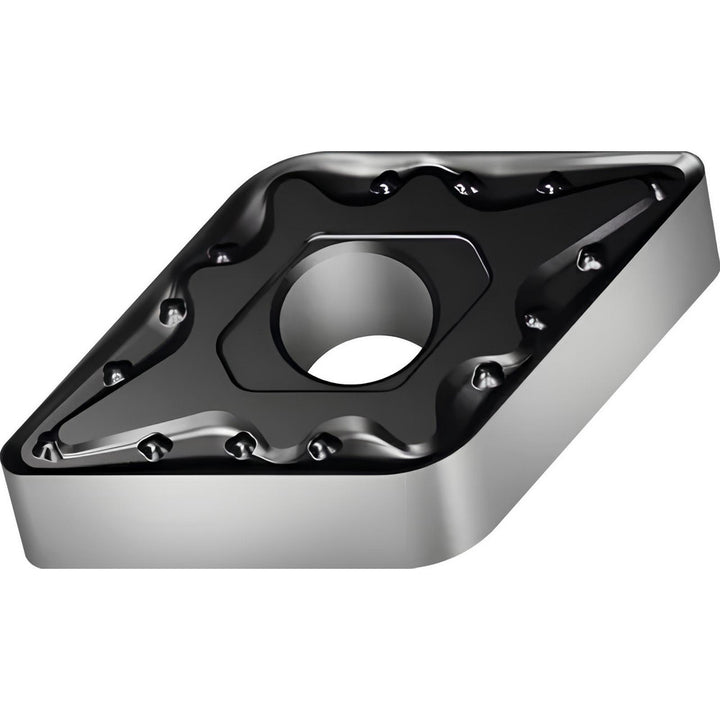

DNMG150404-MM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7376601

Walter

DNMG150404-MM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7376601

MFR# 7376601ISO/ANSI# DNMG431-MM5 WMP20SSeries DNMG-MM5

$23.49List $30.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7376601 is a DNMG150404-MM5 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerMM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG431-MM5 WMP20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-MM5 WMP20S
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number7376601
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
