Walter

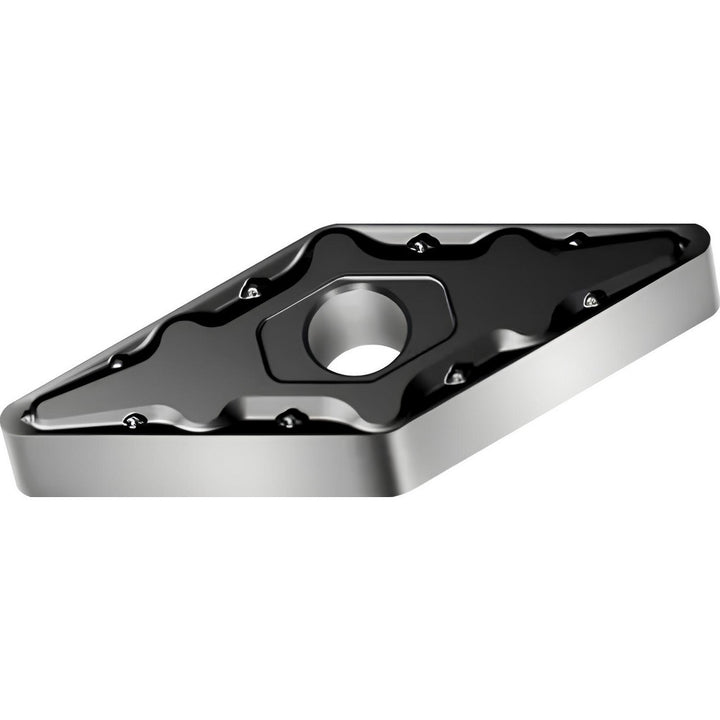

VNMG160408-MM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7376612
MFR# 7376612ISO/ANSI# VNMG332-MM5 WMP20SSeries VNMG-MM5
$41.84List $52.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWMP20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7376612 is a VNMG160408-MM5 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.
Specifications
Chip breakerMM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-MM5 WMP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MM5 WMP20S
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number7376612
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
