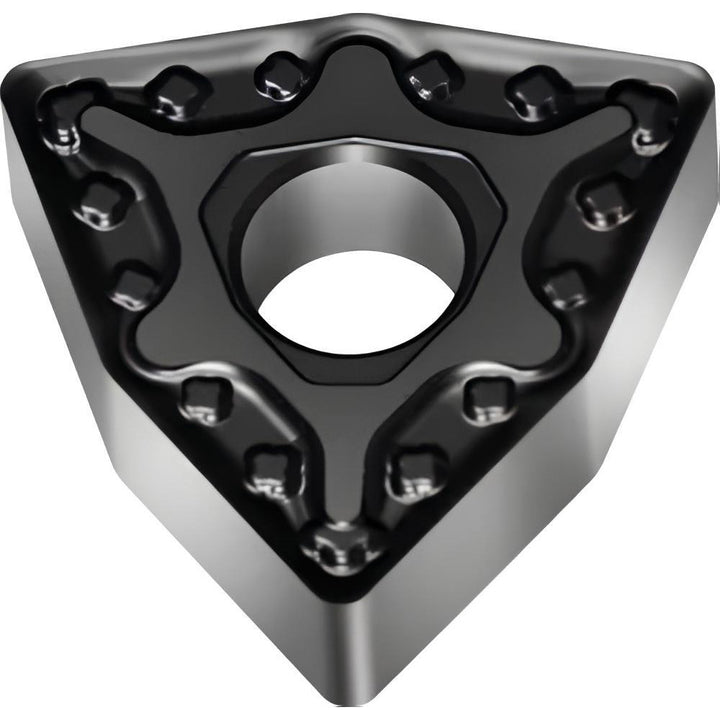

WNMG080408-MM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7376616

Walter

WNMG080408-MM5 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 7376616

MFR# 7376616ISO/ANSI# WNMG432-MM5 WMP20SSeries WNMG-MM5

$20.46List $26.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 7376616 is a WNMG080408-MM5 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerMM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG432-MM5 WMP20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MM5 WMP20S
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number7376616
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
