Walter

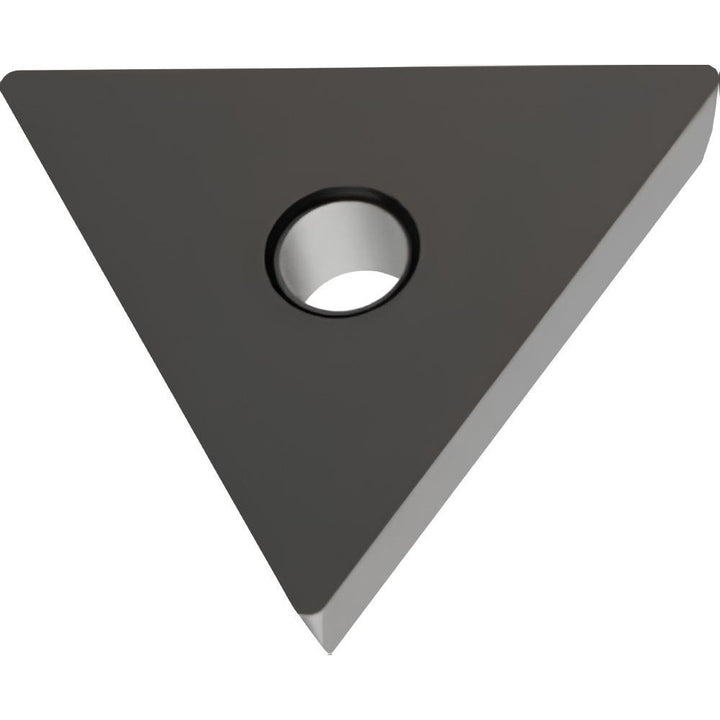

TPGN160308 WSM20S Carbide Insert, Grade WSM20S, TiCN - Walter 7469047
MFR# 7469047ISO/ANSI# TPGN160308Series TPGN
$22.91List $29.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeWSM20S
MaterialCarbide
CoatingTiCN
Description
The Walter 7469047 is a TPGN160308 WSM20S carbide indexable insert, grade WSM20S, TiCN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTPGN322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60
Industry standard numberTPGN322 WSM20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN160308 WSM20S
Iso insert codeTPGN160308
Iso size code160308
Lead angle60
Length range0.6500 - 0.7000
Manufacturers catalog number7469047
Manufacturer gradeWSM20S
Material gradeM20; S20; P20
Maximum depth of cut0.0870
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6500
Wiper edgeNo
