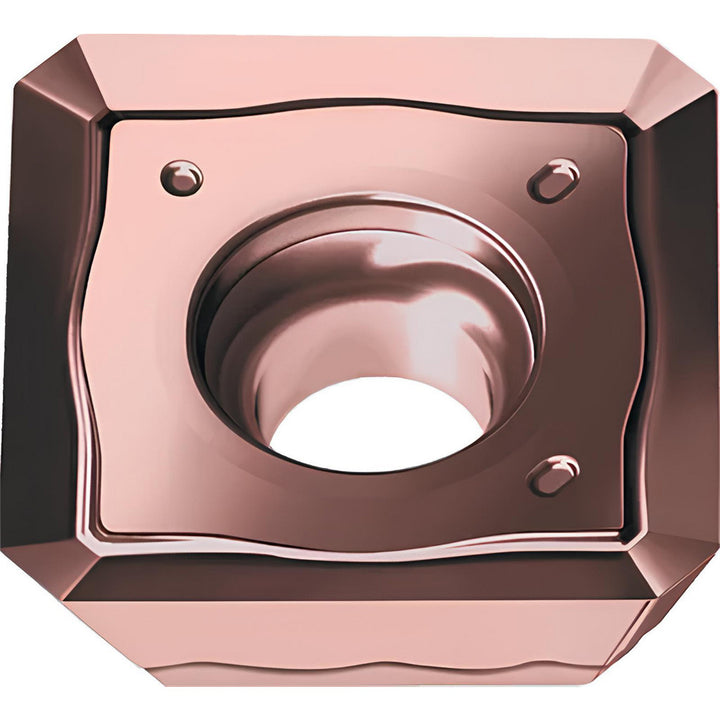

SDHT1204AZN-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 7469770

Walter

SDHT1204AZN-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 7469770

MFR# 7469770ISO/ANSI# SDHT1204AZN-G88 WXN15Cat# SDHT1204AZN-G88Series SDHT

$32.43List $41.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 7469770 is a SDHT1204AZN-G88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeSDHT1204AZN-G88 WXN15
Chip breakerG88
Coating finishTiCN
Coating processPVD
Corner radius0.0120
Cutter series compatibilityM4000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDHT
Iso codeSDHT1204AZN-G88 WXN15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDHT1204AZN-G88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
