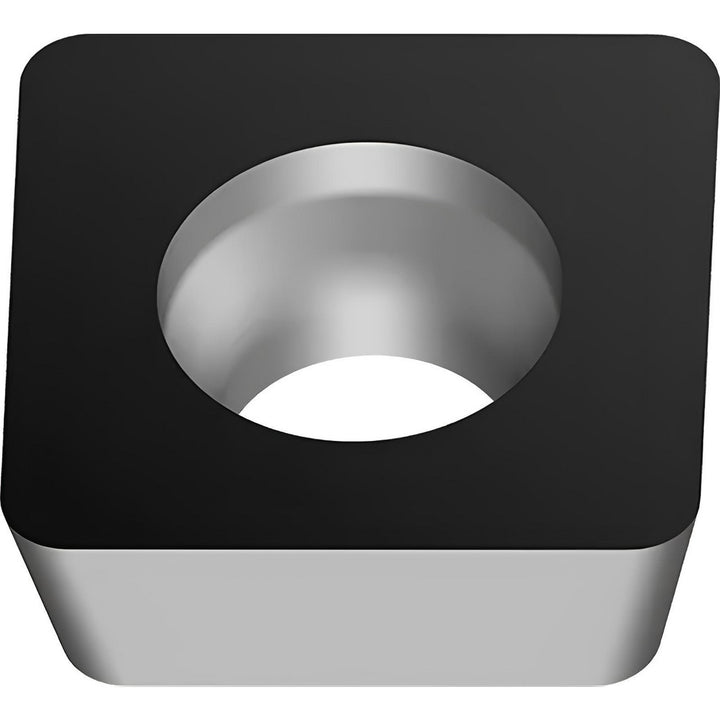

SPMW070308-A67 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 7469966

Walter

SPMW070308-A67 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 7469966

MFR# 7469966ISO/ANSI# SPMW070308-A67 WKP25SCat# SPMW070308-A67Series SPMW

$12.96List $16.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/16
ShapeSquare
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 7469966 is a SPMW070308-A67 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMW070308-A67 WKP25S
Chip breakerA67
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Included angle degree90
Inscribed circle in5/16
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code070308
Insert styleSPMW
Iso codeSPMW070308-A67 WKP25S
Length in5/16
Length range0.0000 to 0.3200
Manufacturers catalog numberSPMW070308-A67
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.3125
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in5/16
