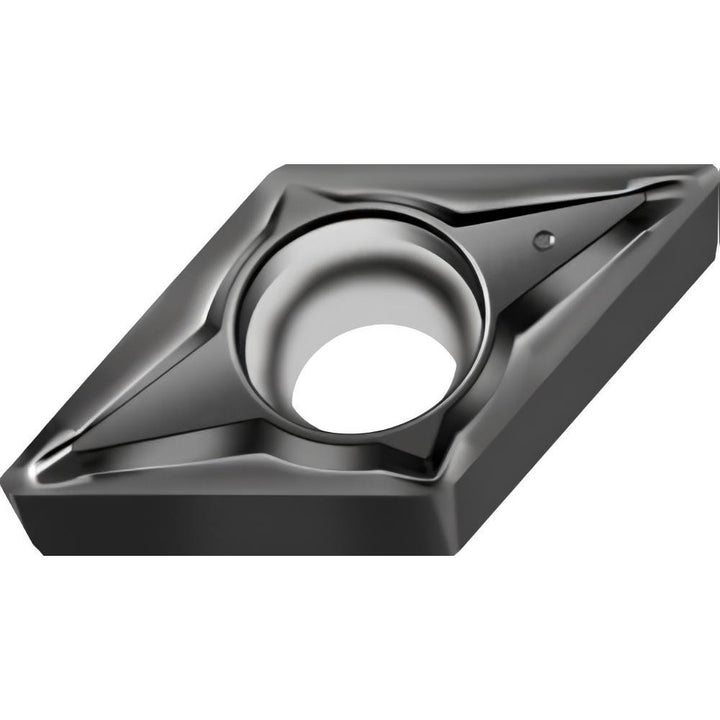

DCGT11T302-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499358

Walter

DCGT11T302-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499358

MFR# 7499358ISO/ANSI# DCGT3(2.5)0.5-FM2 WSM01Series DCGT-FM2

$27.20List $34.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7499358 is a DCGT11T302-FM2 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT3(2.5)0.5-FM2 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50.5
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302-FM2 WSM01
Lead angle55degree
Length range0.4000 - 0.5000
Manufacturers catalog number7499358
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
