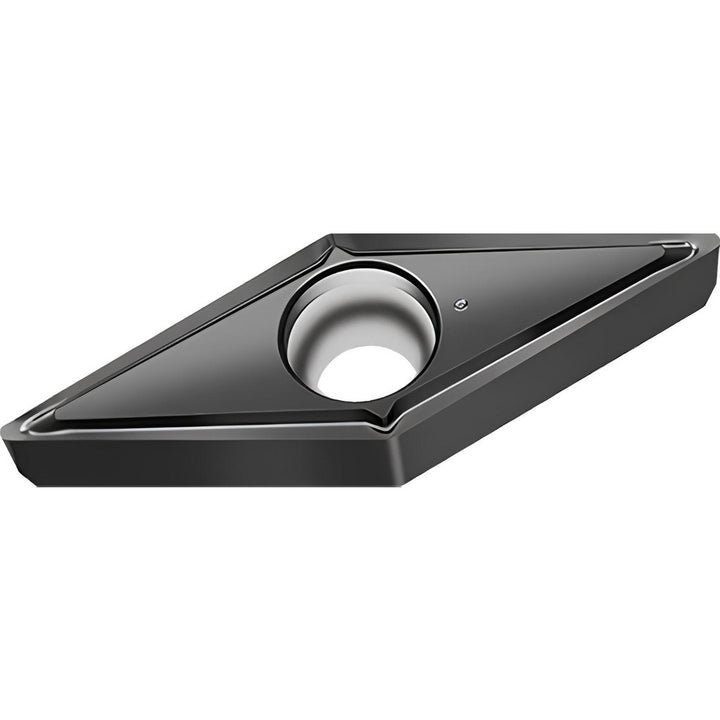

VCGT110304-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499382

Walter

VCGT110304-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499382

MFR# 7499382ISO/ANSI# VCGT221-FM2 WSM01Series VCGT-FM2

$32.42List $41.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7499382 is a VCGT110304-FM2 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle35degree
Industry standard numberVCGT221-FM2 WSM01
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4360
Insert materialCarbide
Insert shapeDiamond 35
Insert size code221
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110304-FM2 WSM01
Lead angle35degree
Length range0.4000 - 0.5000
Manufacturers catalog number7499382
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.0980
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
